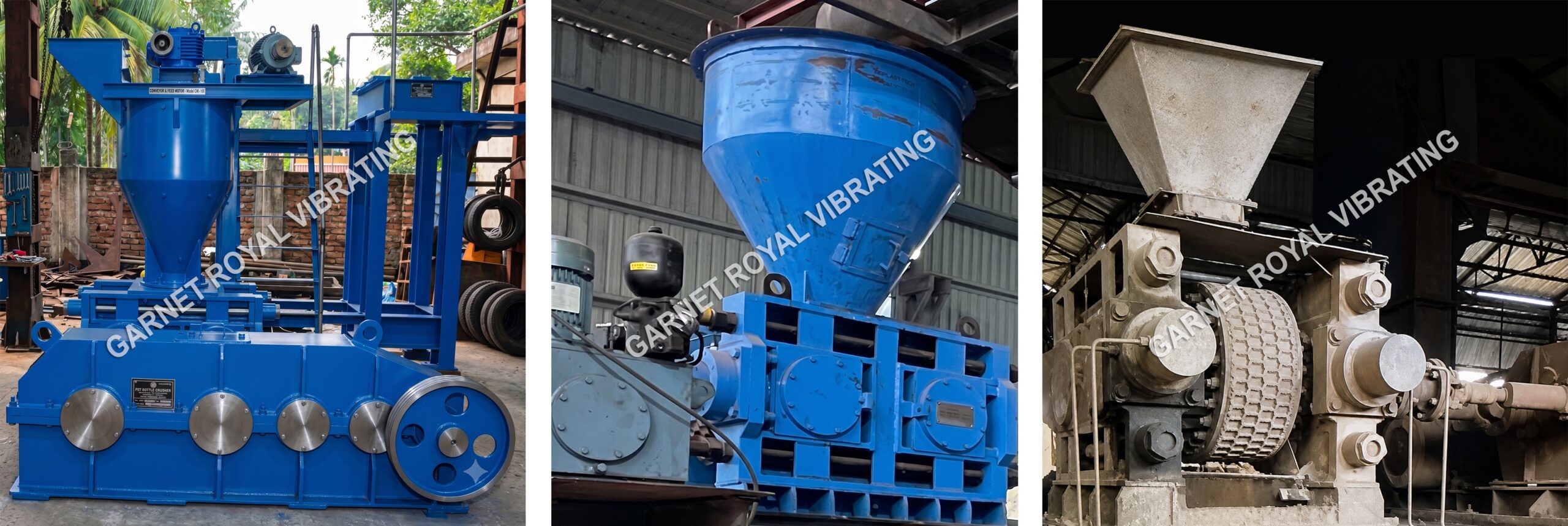

Hydraulic Roller Briquetting Press
The Garnet Royal hydraulic roller briquetting press compacts mineral powders and process fines under a constant hydraulic load of 15–20 MPa, delivering briquettes of uniform density even when feed rate or particle size varies. It is built for mineral processing duty – chromite, manganese and iron ore fines – as well as coal, coke, metallurgical dusts and chemical powders. Machines are configured across a capacity range of 1500 kg – 20 TPH.
Technical specifications
| Automatic | Yes |
| Briquette Size | No |
| Color | Customise |
| Force application | Hydraulic cylinders acting on a floating roller bearing block |
| Computerized | Yes |
| Cooling System | Natural Air |
| Feature | High-Pressure, Energy-Efficient with pocket adjusting device |
| General Use | Mineral powder briquette |
| Main Market | All India, Nepal, Bhutan, Russia, Bangladesh, Zambia, Iraq |
| Main Shaft Speed | 12-16 r/min |
| Material | Other steel alloys |
| Minimum Order Quantity | 1 |
| Motor | As per capacity |
| PLC Control | Other |
| Processing Temperature | Normal |
| Product Shape | Customise |
| Product Type | Hydraulic Roller Briquetting Press |
| Production Capacity | 1500 kg to 20 TPH |
| Roller Diameter | As per production capacity |
| Roller Material | Alloy Steel |
| Roller Width | No |
| Voltage | No |
| Weight (kg) | No |
| Application sectors | Steel Plant |
Specifications are indicative and configured to your application. Share your material, feed size and required output for an exact model recommendation.
Experience supreme performance with our Exclusive Hydraulic Roller Briquetting Press, designed for mineral processing perfection. Engineered with a dazzling 15-20 MPa oil pressure system and robust feeding via belt conveyor or screw feeder, this industrial blue marvel delivers unmatchable production capacities of 1200-2000 kg/h. Customise your briquette size, benefit from touchscreen PLC controls with fault alarms, and operate safely with extensive emergency and overload protection. Grab yours now – manufactured in India by a leading exporter, offering energy efficiency, high pressure, and solid density results every cycle. Shop now to elevate your mineral processing operations!

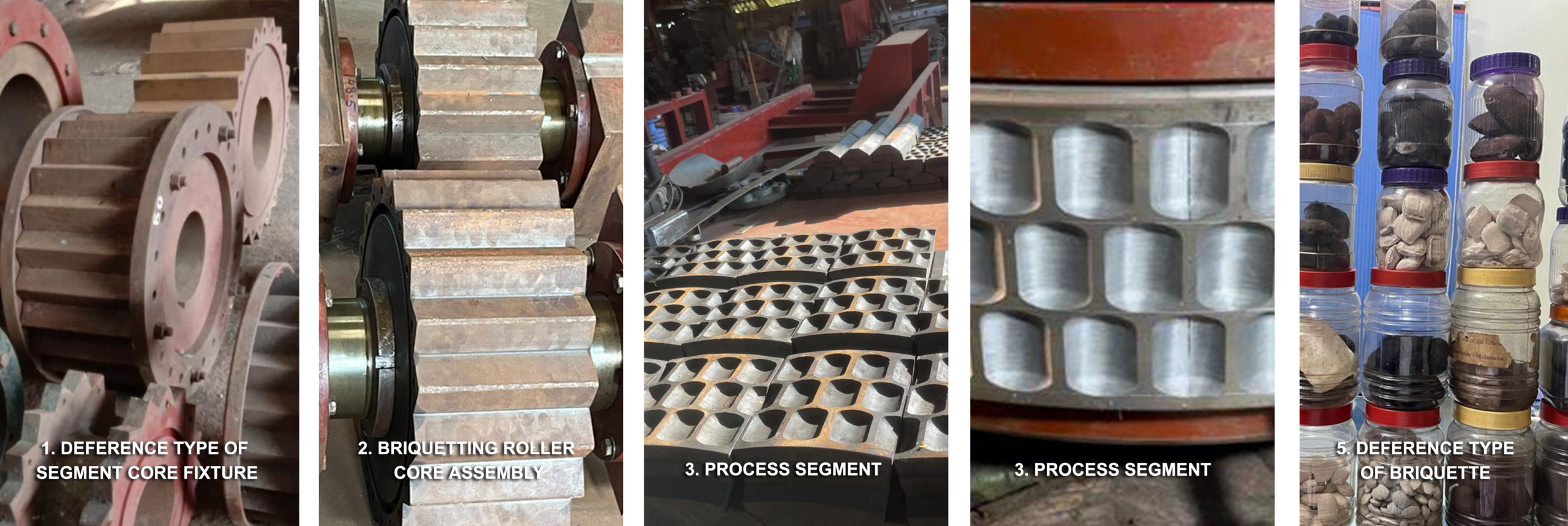

Rollers, segments and briquette shapes
The rollers are the working heart of the press and the part that wears. We machine our own segments and core assemblies, so pocket profile, segment metallurgy and fixing arrangements are all specified to your material rather than taken from a catalogue — and replacements stay available for the life of the machine.
Versatile Application and Methodology
The hydraulic roller briquetting press employs a sophisticated belt conveyor or screw feeder method to seamlessly introduce mineral powder into the press chamber. Apart from mineral processing, it excels in coal, metallurgy, and chemical applications. Its high-pressure rollers shape materials into dense briquettes, adaptable for various industrial uses. The smooth, customisable surface of the application ensures consistently reliable output, making it ideal for sectors that require efficient solid material compaction with a focus on quality and durability.
Domestic Market & Shipping Excellence
Servicing the main domestic market across India, we ensure reliable delivery from our designated FOB port with support from trusted Transport Services. Express Shipping options and transparent charge structures are available to meet your urgent project deadlines. Certified for industrial standards, our Hydraulic Roller Briquetting Press is trusted by suppliers and manufacturers nationwide. Rest easy, knowing every shipment is expertly managed and every product meets stringent certifications for safety and quality, ensuring smooth operations from dispatch to installation.
